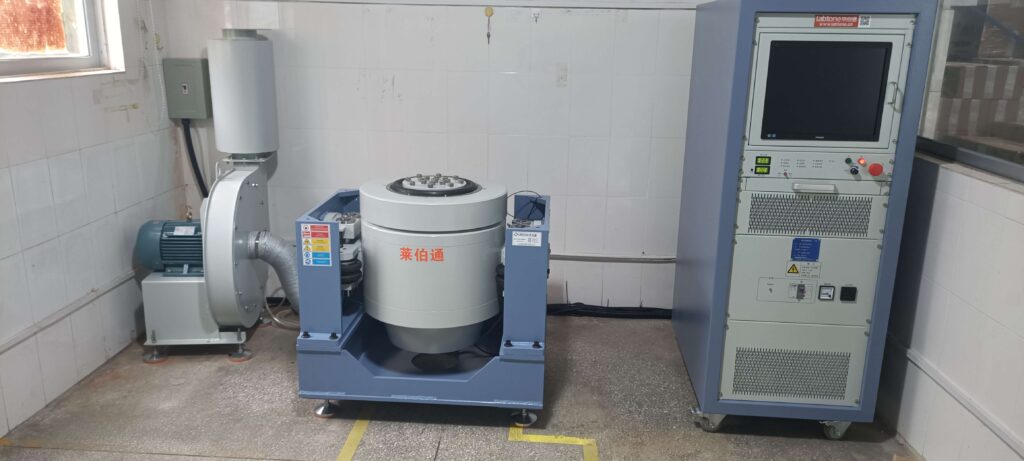

To ensure maximum efficiency, a preventive inspection schedule should be followed.
The operational schedule of the shaker determines the inspection schedule. A shaker
operating daily should be inspected more frequently than a shaker that is used less
frequently. Tightness of electrical connections and screws should be checked on
regular basis prior to operating the system. A complete preventative maintenance is
recommended after the first 250 hours of operation and each 1000 hours thereafter.
● Clean or suck the dirt inside the power amplifier, shaker and air duct connecting
the blower by a cleaner.
● Insure all the cable connections are not loosened, especially the connection on A+,
A-, F+, and F- on the rear of the power amplifier.
● Check correct grounding.
Tools and Equipment
Only an experienced technician utilizing the correct tools should perform disassembly
and assembly of the shaker. Service personnel should ensure that they have the
correct tools before work on the shaker is started. Some of the tools needed are as
follows:
a) T-shape Wrench
b) Inner Hexagonal wrenches.
c) I shape wrench
d) Torque wrench.
The recommended equipment needed to perform the functions outlined in this
manual is listed below. Note: Any suitable equivalent may be substituted for the
equipment listed:
1) Portable crane of forklift.
2) Lifting straps.
3) Vacuum cleaner or compressed air blower.
4) 500 V Meg ohm insulation meter.
5) Oscilloscope.
6) Multi-meter.
7) Light weight piezoelectric accelerometer.
8) Two blocks made of wood or metal bar stock (6cm×4cm×2.5cm).
9) Two plywood boards (100cm×100cm×1cm)
Preventive Maintenance
The shaker must be kept clean at all times. The armature should be removed if
necessary and the interior of the shaker body cleaned thoroughly in accordance with
the manufacture’s recommended preventative maintenance schedule vacuuming or
compressed air blowing recommended for this operation.
